Roof Purlins and Girts

LYSAGHT® Roof Purlins and Girts are light-weight structural steel members, designed in accordance with the As/Nzs 4600: 1996 Cold Formed Steel Structures, utilising high Strength Zinc-coated Steel.

Available in ZED-plus™ Sections, these roof purlins can be used over single spans or un-lapped and lapped continuous spans in multi-bay buildings. Lapped continuous spans result in considerable capacity increase in the system. LYSAGHT® CEE-plus™ Sections may be used in single spans, and un-lapped continuous spans in multi-bay building, and are ideal as eave purlins or where compact sections are required for detailing.

Enquire Now

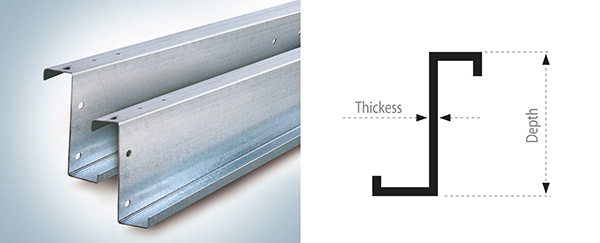

ZED-Plus ™ (90 deg)

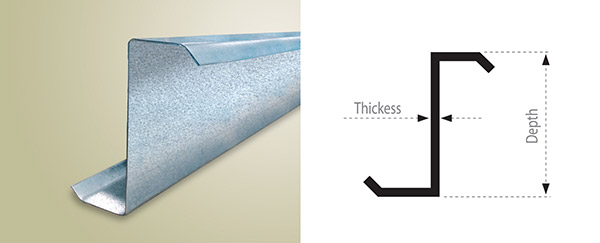

ZEE – Plus™ (45°)

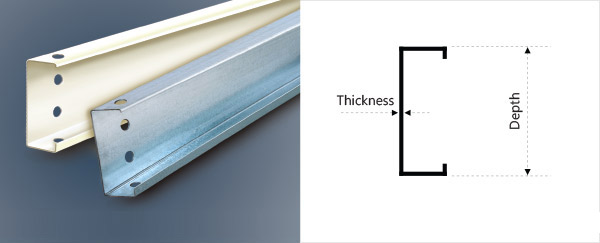

CEE Plus™

Strength and Durability with Structural Integrity

Section	Depth	Thickness Range	Material Specifications
LYSAGHT CEE plus™	102	1, 1.2, 1.5, 1.9, 2.4	Galvanised steel complying with AS1397-2001 Available in G550, G450 and G350 grade Steel with Z275, Z275, Z120 coating (G: minimum yield stress in MPA ; Z: minimum coating mass in g/m2.)
	152	1, 1.2, 1.5, 1.9, 2.4
	200	1.5, 1.9, 2.4, 3.0
	240	1.5, 1.9, 2.4, 3.0
	250	1.5, 1.9, 2.4, 3.0
	300	1.9, 2.4, 3.0

LYSAGHT ZEE plus™ (45° lip)	152	1, 1.2, 1.5, 1.9, 2.4
	200	1.5, 1.9, 2.4, 3.0
	240	1.5, 1.9, 2.4, 3.0
	300	1.9, 2.4, 3.0

ZED-Plus ™ (90 deg)	152	1, 1.2, 1.5 1.9, 2.4
	200	1.5, 1.9, 2.4
	250	1.5, 1.9, 2.4
	300	1.9, 2.4, 3.0

Note: 1. The above information is for standard offerings. 2. Non standard sections with thickness ranging from 0.6 mm to 3.0 mm are also available. 3. C and Z sections with thickness range 0.6 mm to 1.2 mm are also available in G550 AZ150 and AZ200 steel 4. Please contact Tata Bluescope Steel for Non-standard requirements and more information.

Greater Spanning Capability

Cold formed galvanized purlins have a minimum yield strength of approximately 60% greater than that of hot rolled steel that is typically used for purlins. This high strength – to – low weight ratio in most applications allows extra spanning capability for the most cost effective structures.

Easier to Handle

The high-strength to low-weight ratio makes the product easier to handle, both during transportation and erection.

Lightweight, Quick and Easy Installation

The pre-punched sections of the high strength galvanized cold rolled sections reduces fixing time by using self-drilling, self-tapping screws and standard bolts.

Longer Life

LYSAGHT® Purlins are made from Zinc and Zn-Al alloy coated steel. They have greater corrosion resistance and lasts longer under extreme weather conditions.
